Harmoni SmartMat

harmoni electric underfloor heating mat

Call for more information

01473 559088

Download a PDF catalogue

Lifetime Warranty
Installer Warranty
Intertek S-Mark

A self-adhesive heating mat designed for fast and efficient installation directly onto wood or concrete sub-based floors with minimal increase in floor height. Consistent, even heat is achieved by pre-spaced heating cables. Our heating mats come with a Lifetime Warranty and an Installer Warranty as standard.

Available in outputs of 100, 150 or 200W/m2.

  • Lifetime Warranty
  • Superior quality product
  • Lowest price
  • Intertek S-Mark approved for added safety
  • Trusted brand

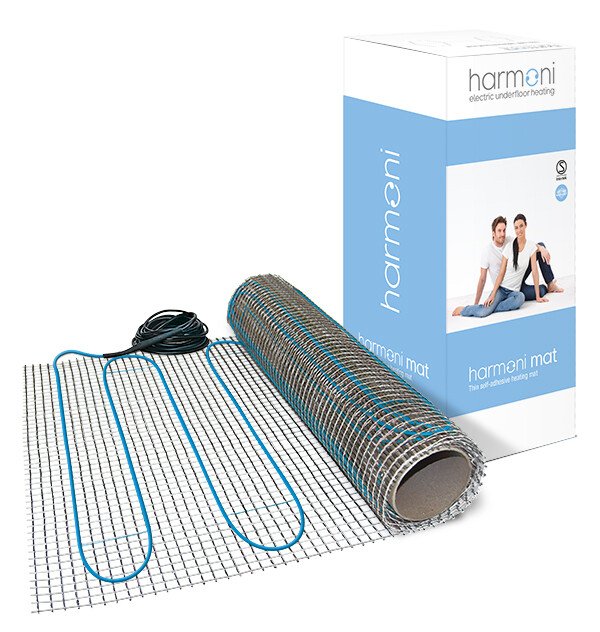

Harmoni heating mat
harmoni electric underfloor heating mat

Self-adhesive backing

The backing mesh is made of strong, durable nylon with a self-adhesive backing. This allows for a quick, secure installation and avoids problems due to the mat floating or moving in the tile adhesive.

harmoni electric underfloor heating mat

Stitched cable

The heating cables are stitched to the durable backing mesh with a special heat resistant thread. This ensures the element spacing remains uniform, guaranteeing an even distribution of heat and eliminates the opportunity for cold spots, which is a common problem with lesser quality mats.


  • Self-adhesive mesh
  • Ultra thin heating cable
  • Twin conductor heating cable
  • Suitable for most floor surfaces
  • 100% aluminium earth sheath


  • Cable thickness: 3mm
  • Output: 100, 150 or 200W/m2
  • Operating voltage: 230/240V
  • Cold tail connection lead: 3m


Harmoni Heating Mat 100W/150W/200W

The Harmoni heating mat can be installed under ceramic, porcelain, slate and natural stone tiles. When using laminate, engineered timber or vinyl floors a self-levelling compound should be used.

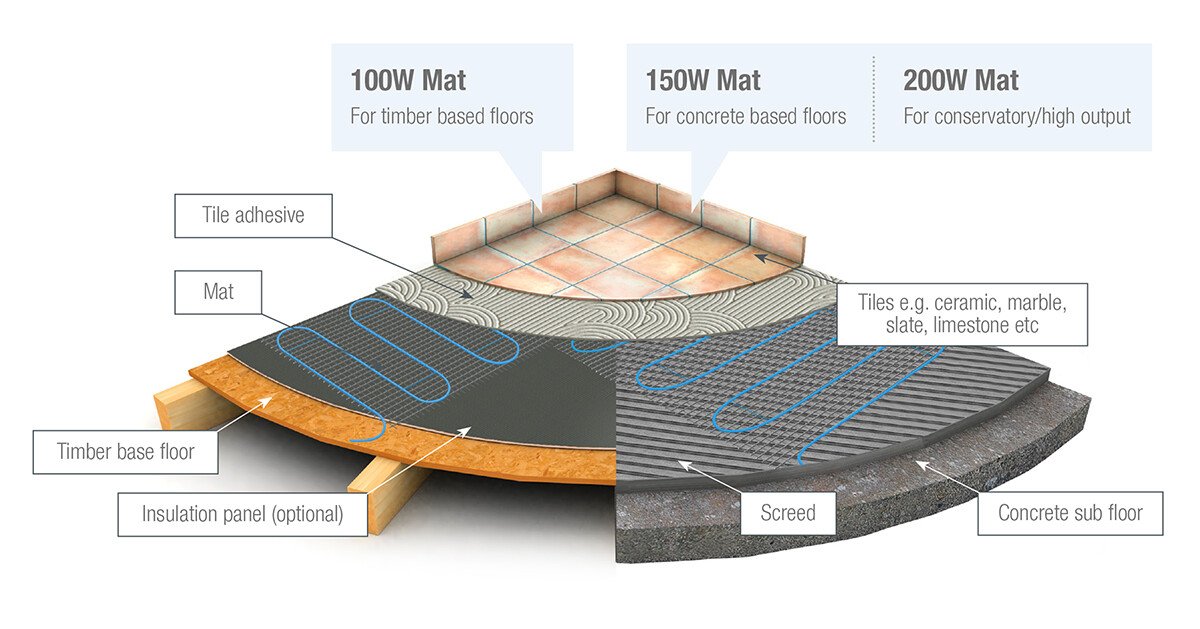

Harmoni heating mat application
